STM32 Programming Ecosystem

Not long ago I started playing with STM32CubeMX and Eclipse to do some experiments with the STM32 ARM Cortex M3 processors.

Setting up the toolchain, the IDE etc was a bit complex, so I decided to create a youtube video about it, thinking it might be useful for others going through the same thing.




The reason why I did things that way was that with my Eclipse/ARM setup I was planning to use also other (non ST) devices, so it made sense not to use the ST specific version of the tools, which was also bound to the Mars eclipse version while I normally use Neon now.

I was wrong.

I mean yes, the intent made sense, but honestly all the additional hassle to avoid installing a new Eclipse instance was not worth it.

A couple of days ago I was lucky enough to participate to an extremely interesting Workshop at the ST Headquarters in Geneva (Switzerland).
They explained how to setup the tools,provided a few tips on how to best use them and provided extremely valuable information.
The workshop was engaging, well paced and indeed informative, kudos to ST for it ad thanks again for the invitation!

The workshop will be held in various cities in the next days (at the time I am writing), I strongly encourage you to participate if you are interested (it  is free).
This is the link for Europe, you might need to search around their website if you are interested in other regions, there might be something available, not sure

http://www.st.com/content/st_com/en/about/events/events.html/stm32-ecosystem-emea.html

Now I need to capture in a new video the “standard/correct way” of doing things, I do it mainly because it is a sort of collection of minutes for myself, but then again, others might benefit from it.

ST uses a proprietary very low cost interface to allow you program and debug its chips, this interface is called ST-Link, which is basically an alternative to a standard JTAG (I normally use Jlink from Segger).
All the official boards include this interface and this allows you to plug in an usb cable and do all the programming/debugging thanks to a Windows driver.
No need for additional hardware.
However, should you have a non official ST board -that has no usb debugging- with one of their STM32 chips on it, chances are that it exposes the pins needed for the ST-Link interface, which you can grab for few bucks (less that 3$ shipped on ebay).

While a full blown JTAG device such as the Jlink might provide some more functionality/speed I have to admit that the cheap ST-Link will probably get the job done for everybody.



There is an (optional) utility you can use to upload the binary file on the STM32 flash, using ST-Link, this is called ST-Link utility.
I am saying “optional” because usually your programming IDE will be able to do that too, interfacing directly with the ST-Link driver.

When it comes to the IDE,while there are many different valid options, ST proposes a free solution based on Eclipse (Mars 2 at the moment).

If you followed my previous video, you saw that you need to install three main components with you IDE :
1) The IDE / Code Editor itself
2) The ARM toolchain (compiler, builder, linker, make…)
3) The Debugger interface

The good news part is that if you choose to go with the ST standard IDE (System Workbench – SW4) this is all taken care of, since ST packaged an eclipse environment that contains all the needed components.
I strongly recommend this approach, makes things WAY easier.
System Workbench comes with the Ac6 STM32 MCU GCC toolchain.



I like Eclipse, I admit it might be a bit “scary” at the beginning, but it is well worth spending a little bit of time to learn it since it can be used in so many different solutions (Coding any language / platform, ETL, Data Mining…).

With System Workbench (SW4) you can create your projects, but creating a Cortex M Project requires a few steps which include adding the relevant libraries / header files for your specific devices (CMSIS and additional stuff).
Like most IDEs, SW4 takes care of that, it will simply ask you which device or board you are targeting.
But it does more than that, it will automatically allow you to chose which additional libraries to include or even which middleware (such as freertos).

… but you will probably not even use those features.
Why? Don’t get me wrong, they provide tremendous help, but the reason why you may not want to use them is that you can do the same in an even better and easier way!

Imagine you were able to add all the libraries, middlewares, set up the correct stack and heap map etc, what would be your next step in the project?
These MCUs have an incredible number of peripherals, you will probably use a few of those in your project, so the first step is usually to set up the clock(s) and then enable and configure the multiplexer for the different pins and the peripherals you need to use.
While it obviously depends on the complexity of your project, this usually requires quite a bit of work, what if you could skip most of that?

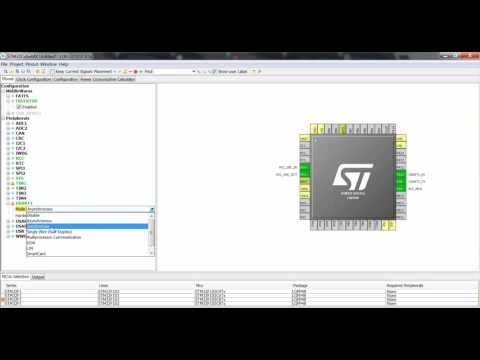

Actually you can, let me introduce you to STM32CubeMX.
You are not obliged to use it, but I cannot imagine a reason why you would not.
For starters:It’s free and it nicely exchanges information with your IDE (SW4 is obviously supported, but so are Kyle and IAR).
What the cube does, is to help you set up your project by doing pretty much the same thing I said you would skip in the project creation in the IDE, PLUS it guides you in setting up your peripherals and the clocks.
Once you are finished, it generates a project dor your IDE with all the configuration set correctly for you and with a code skeleton that configures initializes the peripherals you selected.
Usually you decide upfront which peripherals you need to use and how they should be used and add your code later, but CubeMX allows you to change your mind.
In fact when it regenerates the skeleton code, it uses some specific comment tags to preserve code that you eventually added.
You need to be careful then, on where you write your code, in the skeleton files Cube will add lines like these

/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

That means that if you need to add your code, it should be placed between those two lines, there are many different sections, in different places, where you can place your code.
As long as you respect this rule, you can go back to CubeMX, change whatever you need to change there and regenerate the code, the code you added will be kept in the new skeleton.
That DID NOT work in my previous setup (Users Eclipse with ARM GNU Toolchain manually setup, instead of using SW4), but maybe it was just me messing up things.
It definitely works smoothly using SW4.



The final component is STMStudio.
You can use it to debug your applcation, this is nto the only option obviosuly, since the IDE already includes a pretty good debugger, but STMStudio gives you a nice and simple way of monitoring variables (with graphical output eventually, sometimes it is useful).

Indeed there are many ways of customizing this ecosystem, but I found that, particularly if you are not an expert, it really helps in sticking to the standards: SW4, STM32CubeMx, ST-link and STMStudio seem to work very well together.

Here the links to download them :


Happy coding!

The new video is here
